How Does the Orion's Belt Function Work?

The Orion's Belt function is an exclusive function of the Orion Nano. It can be used with up to three Orion Nanos. With future firmware updates, we plan to open the connection for more units.

Orion’s Belt Connection

With the Orion Nano, you can craft your custom coffee blend with exceptional precision. Connect up to 3 Orion Nanos to create an on-demand coffee-blending station.

Our Orion’s Belt innovative feature represents our latest development, and we are dedicated to ongoing improvements. We highly recommend you regularly check for the latest firmware updates here to ensure this function operates at its best.

Note:

1. When establishing a connection for 3 Orion Nanos, please pair using [ PAir 1 ][ PAir 2 ] first, followed by [ PAir 1 ] and [ PAir 3 ] .

2. If you wish to pair only 2 Orion Nanos, please pair using [ PAir 1 ] and [ PAir 3 ].

3. In Orion’s Belt mode, the Sleep (Power Saver) function will be disabled.

Follow the instructions below to set up the Orion’s Belt:

Mode 4 - Belt Mode

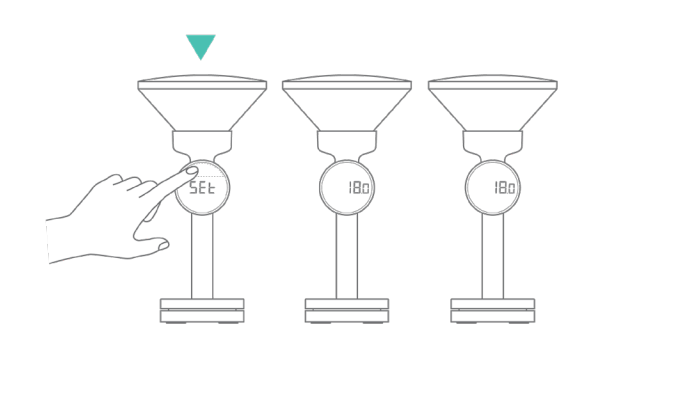

1. With Orion Nano powered on, press and hold Power to enter the Setting mode. [ SEt ] will appear on the display.

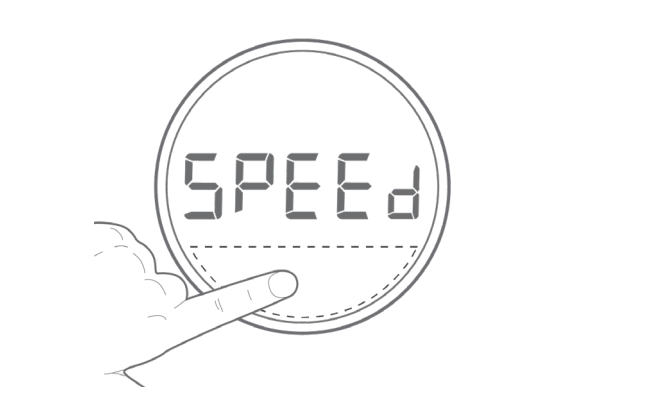

2. Press Dose to access the Settings Menu. The first setting [ SPEEd ] will be displayed.

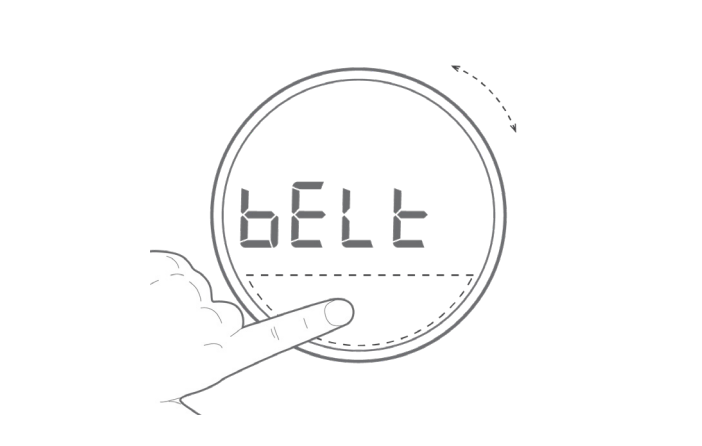

3. Rotate the dial until [ bELt ] is shown, then press Dose.

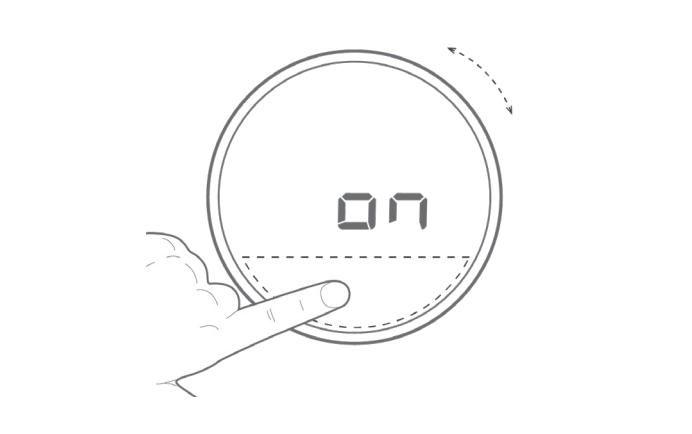

4. Rotate the dial to switch the connection to “on”, and press Dose again to save the settings.

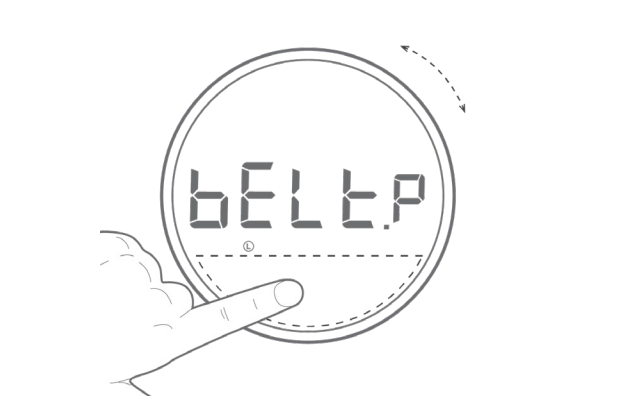

5. Rotate the dial to display [ bELt.p ], then press Dose, and it will display [1].

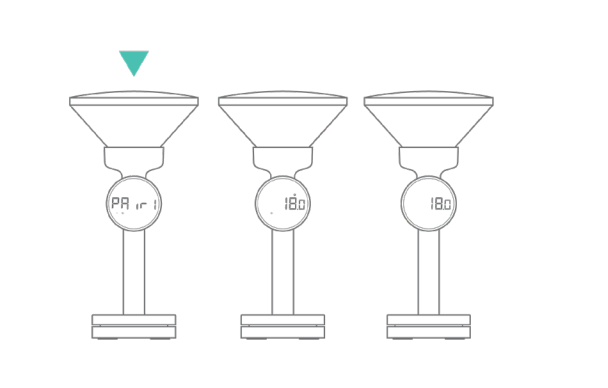

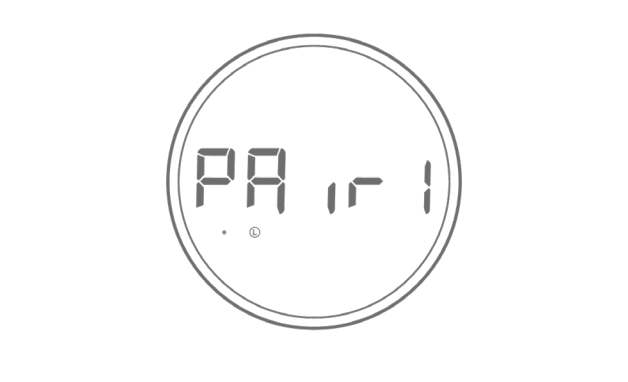

6. Press Dose again to show [ PAir 1 ]. This unit will serve as the master unit.

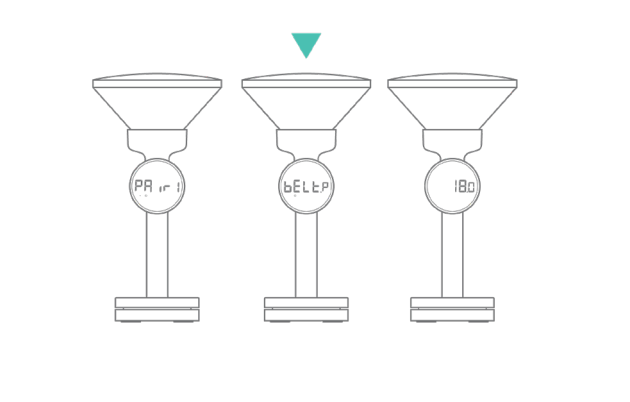

7. Repeat steps 3 to 4 on the second unit you wish to pair.

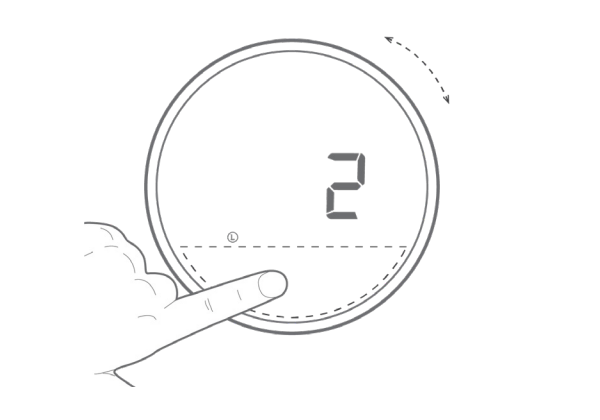

8. Select [ 2 ] in [ bELt.p ] setting, press Dose to confirm.

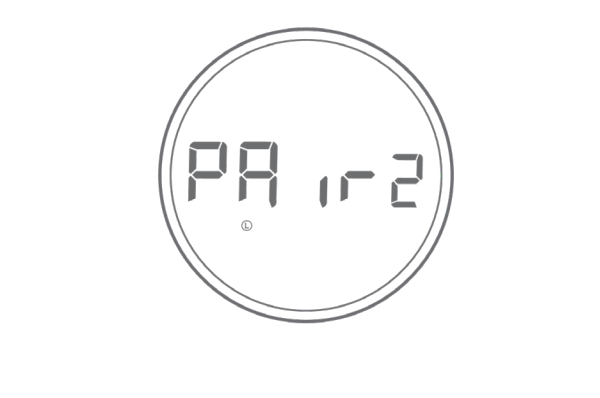

9. [ PAir 2 ] will be displayed.

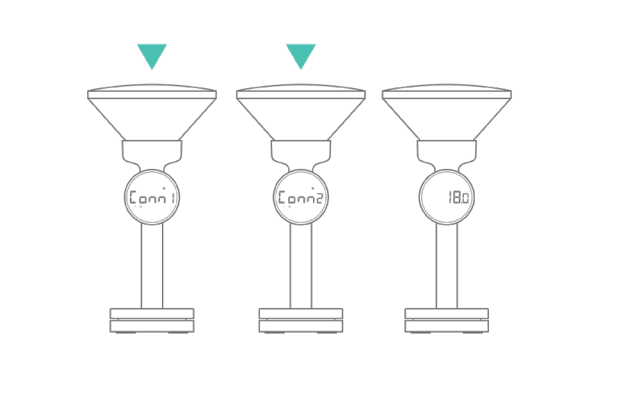

10. Pairing starts automatically. [ Conn 1 ][ Conn 2 ] will prompt once the connection is established and then return to dosing mode. The link indicator will stop flashing.

11. Go back to the first unit and enter the [ bELt ] mode. Rotate the dial to select [ 1 ] in [ bELt.p ] setting, press Dose. [ PAir 1 ] will be displayed.

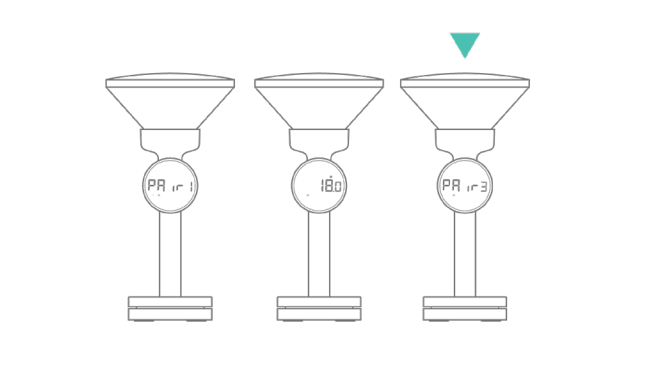

12. Repeat steps 3 to 4 on the third unit you wish to pair, and rotate the dial to select [ 3 ] in [ bELt.p ] setting, press Dose to confirm. [ PAir 3 ] will be displayed.

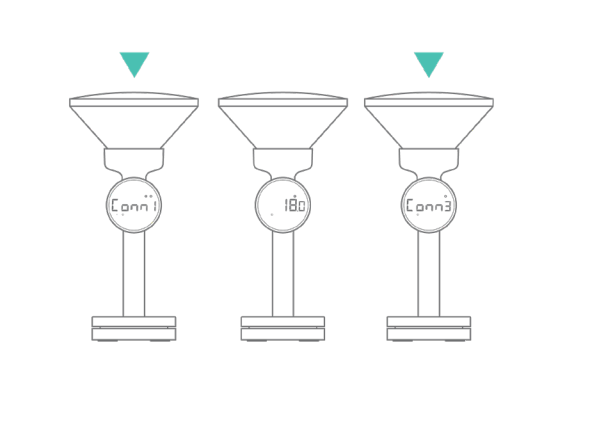

13. Pairing starts automatically. [ Conn 1 ][ Conn 3 ] will prompt once the connection is established and then return to dosing mode. The link indicator will stop flashing.

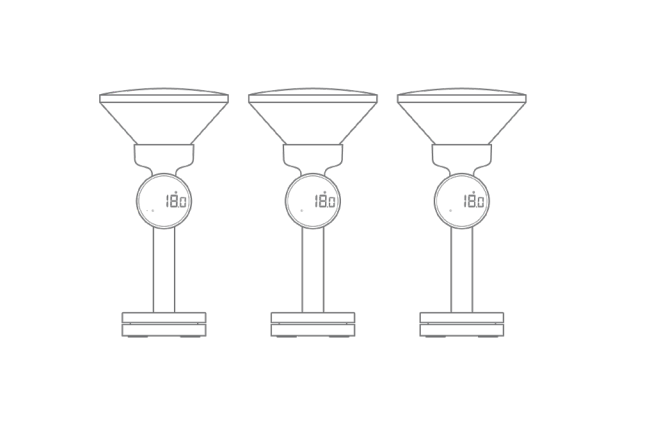

14. The indicator [ L ] will remain lit on all units when they are connected and a [ . ] icon will be shown on the master unit.
