Guide to Orion Nano Modes

Mode 1 - Manual Dosing Mode

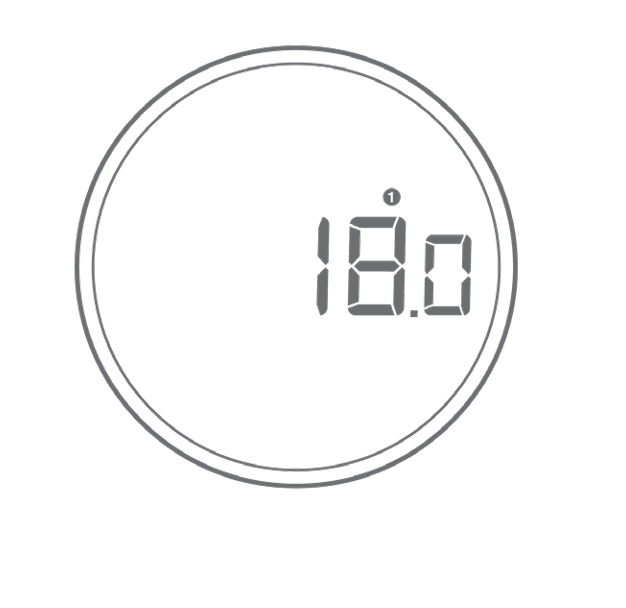

This is the default dosing mode. The Orion Nano allows you to store three presets for your desired weights. For instance, you can set preset 1 to 10 g, preset 2 to 20 g, and preset 3 to 30 g. The minimum weight for the preset is 4 g.

1. Select a preset by rotating the Dial. Adjust the preset value by pressing Power and rotating the Dial. Press Power to confirm.
2. Press Dose, and the Orion Nano will begin dosing until the desired weight is reached within ± 0.25 g (A solid green LED will display to indicate an accurate dose).

3. At the end of dosing, you may press Dose several times to ‘pulse’. Pulse will slowly add a few more beans if needed.

4. Press Power to reset and return to Dosing mode.

• Manual dosing mode can dose on demand with a selected preset.

• [ CUP ] [ rESEt ] will appear on the display if no container is detected on the platform. You can dismiss the warning by pressing Power, and it will not appear again until the Orion Nano is restarted.

• A [ NOISE ] message will appear if a container is removed from the Orion Nano or if the platform is touched during dosing. Please dose again.

Pulse in Manual Dosing Mode

The Orion Nano has a pulse function that adds a few beans to the dose manually at the end of each dose. To pulse (add) a few more beans at the end of each dose, simply press the Dose and the Orion Nano will dispense add a small amount of beans with each press. If one press doesn’t drop any beans, you can press it multiple times until the desired weight is reached.

Mode 2 - Auto Dosing Mode

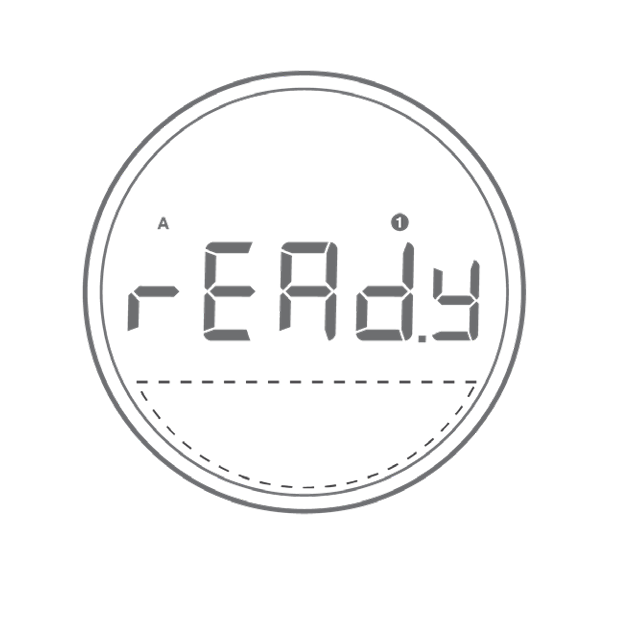

Auto-dosing mode dispenses coffee whenever a container is placed on the platform. When in Auto mode, you will see an ‘A’ indicator in the top left corner of the display. Press Dose and a [ rEADY ] message will appear on the display. To exit the [ rEADY ] display, press Power to return to the preset weight.

1. Switch into automatic dosing mode by pressing and holding Power and selecting the Auto mode with the Dial. Press Power again to confirm the mode.
2. Select or adjust a preset weight.
3. Press Dose to start automatic dosing, the display will show [ rEADY ].
4. To start the first dose, press Dose again and the automatic dosing will begin.
5. Remove the completed dose, and wait for the display to show [ rEADY ] again.
6. Place another container on the platform and dispensing will start again.
7. Press Power to set a different dose and leave the current auto dosing session.

• In Auto dosing mode, the Orion Nano will dose automatically when a container is placed on the platform.

• There will be an ‘A’ indicator in the top left corner of the display when in Auto mode.

• [ CUP ] [ rESEt ] will appear on the display if no container is detected on the platform. You can dismiss the warning by pressing Power, and it will not appear again until the Orion Nano is restarted.

• A [ NOISE ] message will show when a container is removed from the Orion Nano or the platform is touched during dosing. Please dose again.

Pulse in Auto Dosing Mode

The Orion Nano has a pulse function that adds a few beans to the dose manually at the end of each dose. To pulse (add) a few more beans at the end of each dose, simply press the Dose button and the Orion Nano will dispense add a small amount of beans with each press. If one p

Mode 3 - Weighing Mode

The weighing mode is the Orion Nano’s smart scale mode, functioning as an industrial weighing scale with a 500-gram capacity

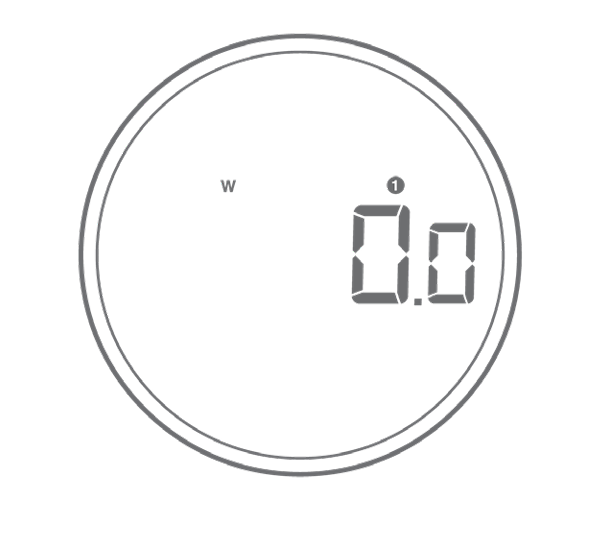

1. To enter the weighing mode, rotate the Dial until a ‘W’ indicator appears in the top left corner of the display.

2. Place the object you wish to weigh on the platform and the weight of the object will show on the display.

3. The Power and Dose buttons will function as ‘Zero’ and ‘Tare’. There are two different weighing units in Weighing Only Mode: grams and ounces.

• The LED display shows [ 0.0 ] when the scale is set to grams. • The LED display shows [ 0.000 ] when the scale is set to ounces.

• The readability is 0.1 g for grams and 0.004 oz for ounces.

Mode 4 - Belt Mode

With the Orion Nano, you can craft your custom coffee blend with exceptional precision. Connect up to 3 Orion Nanos to create an on-demand coffee-blending station. Our Orion’s Belt innovative feature represents our latest development, and we are dedicated to ongoing improvements.

We highly recommend you regularly check for the latest firmware updates to ensure this function operates at its best. To read more about the function, please see this article here.
