Orion Doser Comparison Table




We've created a table guide below to show all the differences and similarities between the three models in our Orion Bean Doser Series.



Orion Information in Comparison

Curious about what makes all of our bean dosers unique from one other?

We've gathered all the information and numbers (right down to the gram) on all of our dosers below. This should make it easier for you to compare if you are planning to purchase your first Acaia doser or add more to your collection.

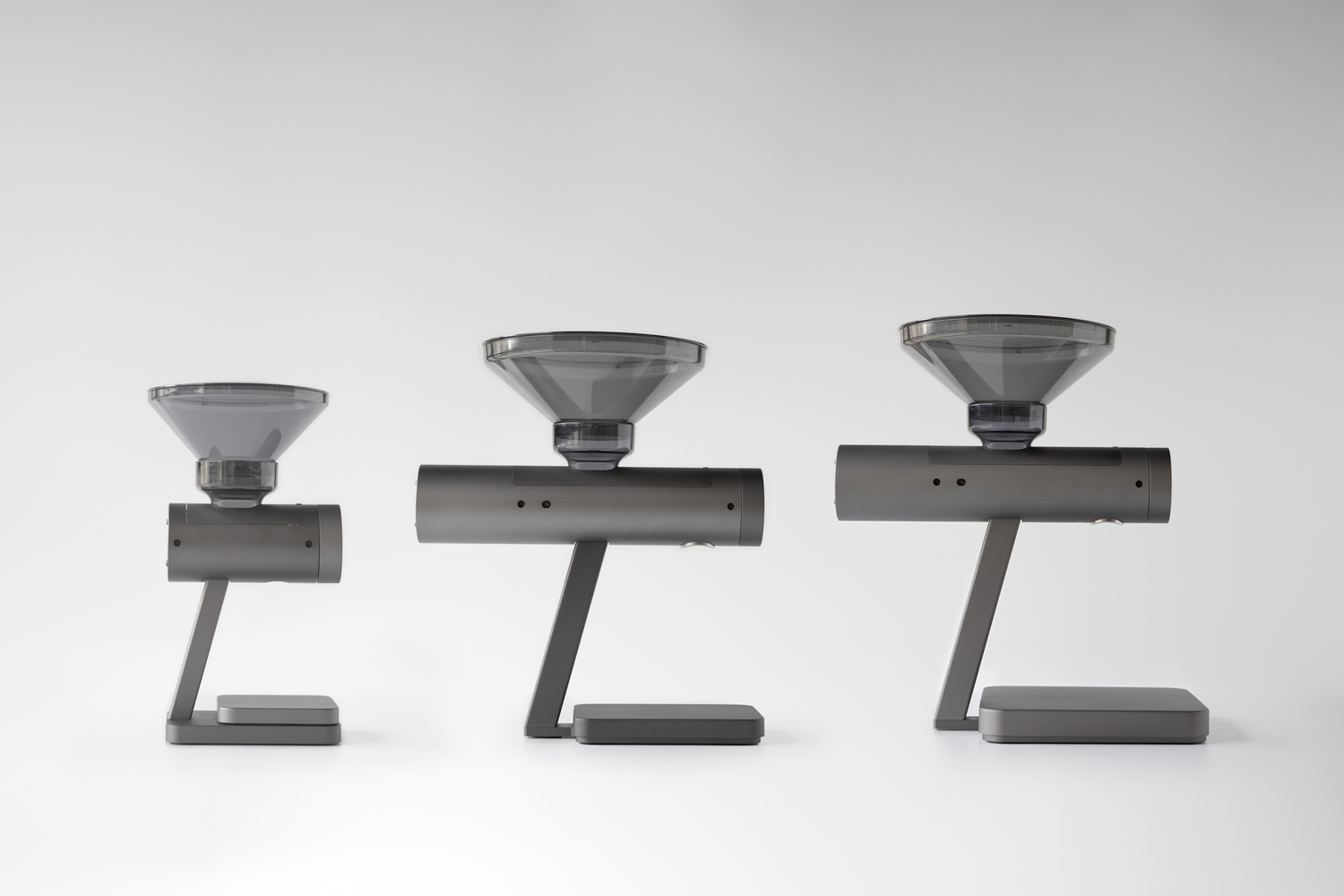

Doser Orion Orion Mini  Orion Nano



Model





AO103 / AO104



AO205 / AO206



AON301



Color



Space Gray / Matte White Space Gray / Matte White Space Gray
Dimensions



W: 202 mm

L: 332 mm

H: 377 mm





W: 202 mm

L: 303 mm

H: 352 mm



W: 163 mm

L: 174 mm

H: 314 mm

Product Weight



3070 g ± 10 g

2850 g ± 10 g

1370 g ± 5 g
Product Materials

Aluminum, PC, Stainless Steel

Aluminum, PC, Stainless Steel

Material Aluminum, PC, Stainless Steel



Maximum Capacity



3000 g / 105.82 oz

3000 g / 105.82 oz

500 g / 17.63 oz



Minimum Weight



0.1 g

0.1 g

0.1 g



Measuring Units



g / oz

g / oz g / oz



Indication Limit





3090 g /

108.99 oz





3090 g /

108.99 oz



515 g /

18.16 oz



Readability



0.1 g

0.1 g

0.1 g



Repeatability



0.1 g



0.1 g



0.1 g



Linearity



1 d

1 d 1 d



Bluetooth, Power, and Battery

Model Orion



Connectivity



Bluetooth 5.0

Bluetooth 5.0

Bluetooth 5.0



Battery





Lithium-ion rechargeable 7.4 V 2600 mAh

Lithium-ion rechargeable 7.4 V 2600 mAh

Lithium-ion rechargeable 7.4 V 2200 mAh





Battery Life





Up to 48 hours

Up to 48 hours Up to 12 hours



Power Supply



12 Vdc / 2.0 A 12 Vdc, 2.0 A 5V / 3A
Power Connector



Power Adapter

*European purchases will include
the 220v power and plug adapter.

Power Adapter

*European purchases will include
the 220v power and plug adapter.

Type-C charging and universal adapter



Firmware and Modes

Model Orion Orion Mini Orion Nano
Modes

Manual

Auto

Weighing Scale

Manual

Auto

Weighing Scale

Manual

Auto

Weighing Scale

Belt
